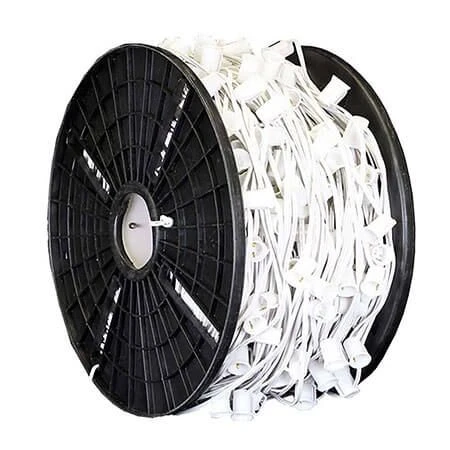

C9 Cord, 6″ Spacing, White Wire, SPT-1, 500′

C9 6″ Light Line – 500′ Bulk Spool – Empty Socket Light Line – White Wire

• • Socket Type: C9 (E17)
• • String Length: 500′
• • Number of Sockets: 1000
• • Socket Spacing: 6″
• • Quality Grade: Commercial
• • Wire Capacity: 7 amp
• • Rating: SPT-1 – .03 inch insulation thickness
• • Wire Gauge: 18
• • Voltage: 110/120
• • Usage: Indoor/Outdoor
• • Case Quantity: 1
• • Case Weight: 26.4 lbs.

Plugs sold separately – (18/2 Male Slide On – SPT-1 and 18/2 Female Slide On – SPT-1)

Maximum bulb load:

• 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
• 100 (C9) 7-watt incandescent bulbs
• 70 (C9) 10-watt incandescent bulbs

Maximum amperage for 18/2 gauge wire:

• Up to 50 feet= 10 amps
• 51-100 feet= 7 amps
• 101-150 feet= 5 amps
• 151-200 feet= 3.5 amps*
• 201-250 feet= 2.5 amps*

*= Only used for C7/C9 perimeter lighting applications



Frequently Asked Questions

I only need a few hundred feet of light line, do I have to buy a whole spool?

We do sell our Light Line by 50′ and 100′ sections. Please see our product listings.

Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?

Some people simply fold the cord over into a small, 1″ loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.
