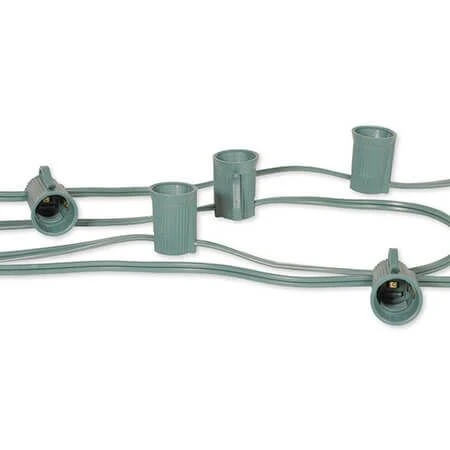

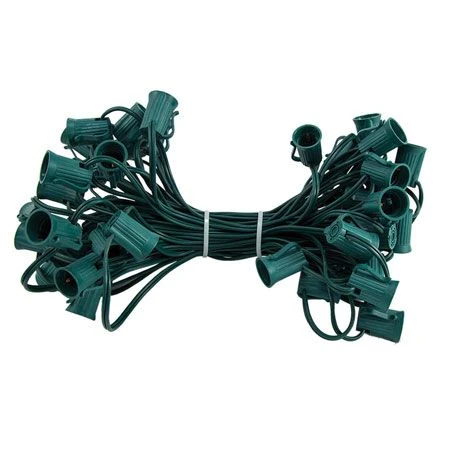

C9 Cord, 15″ Spacing, Green Wire, SPT-1, 50′

C9 Cord, 15″ Spacing, Green Wire, SPT-1, 50′

• • Socket Type: C9
• • Professional/Commercial Grade
• • Length: 50′
• • Number of Sockets: 40
• • Socket Spacing: 15″
• • Rating: SPT-1 – .03 inch insulation thickness
• • Wire Gauge: 18
• • Voltage:  110/120
• • Usage: Indoor/Outdoor


  Plugs sold separately – (18/2 Male Slide On – SPT-1 and 18/2 Female Slide On – SPT-1)

  Maximum bulb load:

  • 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
  • 100 (C9) 7-watt incandescent bulbs
  • 70 (C9) 10-watt incandescent bulbs

  Maximum amperage for 18/2 gauge wire:

  • Up to 50 feet= 10 amps
  • 51-100 feet= 7 amps
  • 101-150 feet= 5 amps
  • 151-200 feet= 3.5 amps*
  • 201-250 feet= 2.5 amps*

  *= Only used for C7/C9 perimeter lighting applications



  Frequently Asked Questions

  Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?

  Some people simply fold the cord over into a small, 1″ loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.
