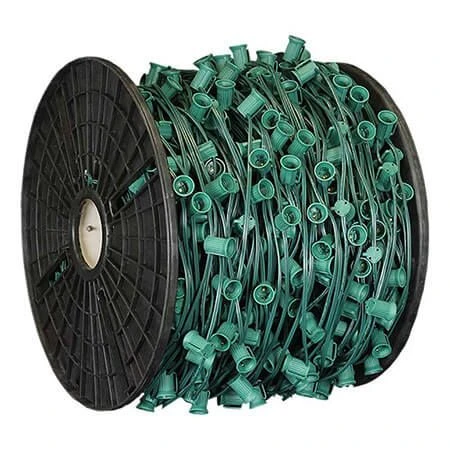

C7 Cord, 6″ Spacing, Green Wire, SPT-1, 1000′

C7 6″ Light Line – 1000′ Bulk Spool – Empty Socket Light Line – Green Wire

• • Socket Type: C7 (E12)
• • String Length: 1,000′
• • Number of Sockets: 2000
• • Quality Grade: Commercial
• • Rating: SPT-1 – .03 inch insulation thickness
• • Wire Gauge: 18
• • Voltage: 110/120
• • Usage: Indoor/Outdoor
• • Case Quantity: 1
• • Case Weight: 41.8 lbs.

Plugs sold separately – (18/2 Male Slide On – SPT-1 and 18/2 Female Slide On – SPT-1)

Maximum bulb load:

• 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
• 100 (C9) 7-watt incandescent bulbs
• 70 (C9) 10-watt incandescent bulbs

Maximum amperage for 18/2 gauge wire:

• Up to 50 feet= 10 amps
• 51-100 feet= 7 amps
• 101-150 feet= 5 amps
• 151-200 feet= 3.5 amps*
• 201-250 feet= 2.5 amps*

*= Only used for C7/C9 perimeter lighting applications



Frequently Asked Questions

Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?

Some people simply fold the cord over into a small, 1″ loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.
